I added wireless charging to my tslim x2. Pictures attached.
I was going to make a charging case with a leather case with a flip cover. I planned to put the charging coil in the cover, but realized it was difficult to route the cable to the charging port.

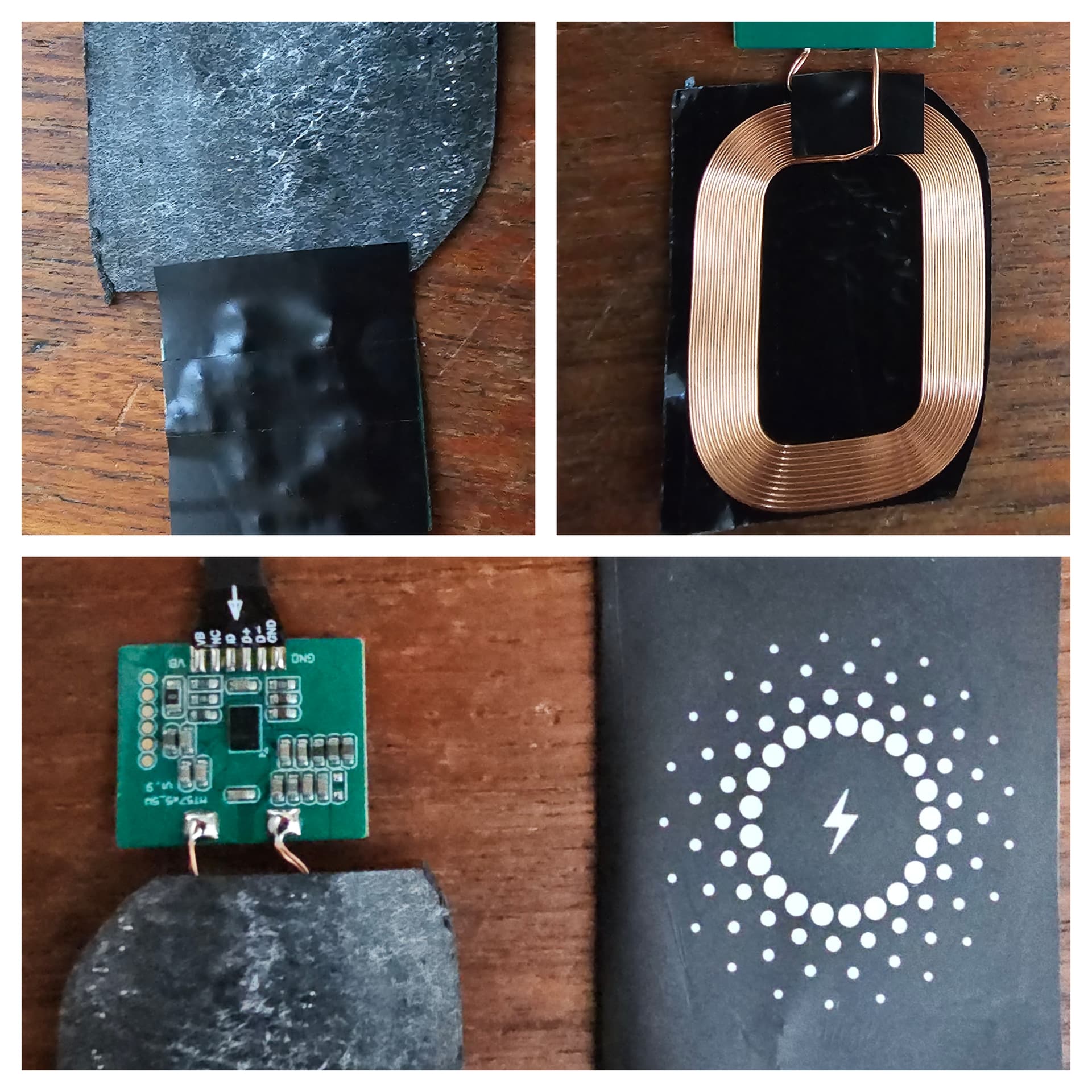

I got a micro USB charging coil on Amazon. It turns out removing the coil form the plastic wrapper reduced the for print significantly. They come in different sizes. I got the smallest one I could find. I don’t know if the coils are the same size, but the one I got fits on the back of the tslim with clearance for the cartridge and the vent.

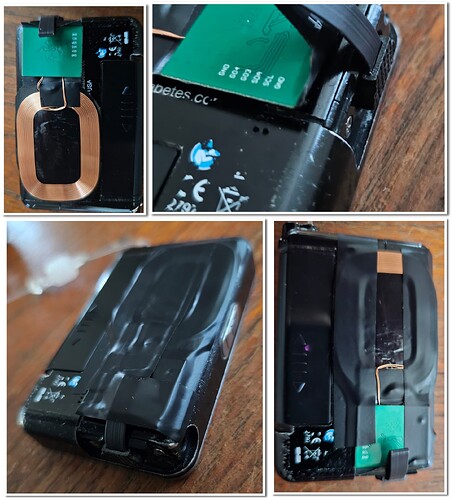

I added electrical tape to prevent shorts. I trimmed the adhesive on the back of the coil. The top edge of the coil rolls over the curve on the corner edge of the pump. I folded the excess cable and covered the whole thing with tape. Then I put it in a silicon case. I did have to remove the clip I’d stuck to the back of the pump.
I was surprised to find that out worked on the inductive phone charger I have. I did have to slide it slightly to the left to got it to line up and start charging.
